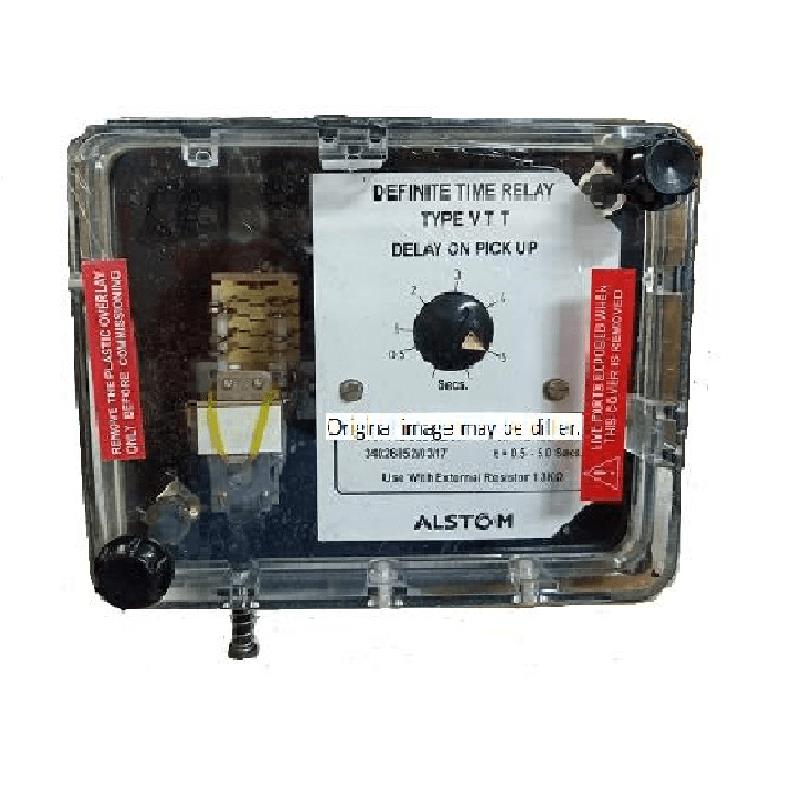

ALSTOM Definite Time Delay Relay VTT11ZG8143BCH
Visit the ALSTOM StoreSKU : VTT11ZG8143BCH
Mfr Part No. : VTT11ZG8143BCH
HSN Code : 8536
| VTT11ZG8143BCH |
Click to Download Catalog for VTT |
|
| STATIC DEF TIME DELAY RELAY WITH DELAY O | ||
| Technical Specifications | ||
| Model No : VTT11ZG8143B(M) | ||
| VTT11 | ||
| APPLICATION - PICK UP | ||
| AUX. CURRENT OR VOLTAGE - 110V DC | ||
| CASE SIZE - 1/2N H 12T | ||
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R | ||
| FLAG - YES | ||
| MOUNTING - FLUSH | ||
| TIME DELAY P/U OR D/O - 0.5 - 5 SECS. | ||
| External Resistor 1.3 K.OHMS | ||
| Name Plate RZF9066-601 | ||
| Outline Diagram MFM017 & FJ0349 | ||
| Wiring Diagram MZDZ601.01-2 | ||
| VTT11ZG8142BCH | |||
| STATIC DEF TIME DELAY RELAY WITH DELAY O | |||
| Technical Specifications | |||
| Model No : VTT11ZG8142BCH | |||
| VTT11 | |||
| Application - Pick UP | |||
| Aux. Voltage - 110 - 125 V dc | |||
| Case Size - 1/2N H 12T | |||
| Contacts Output - 2 N/O 2 N/C S/R | |||
| Flag - Yes | |||
| Mounting - Flush | |||
| Timing Range - 0.1 - 1 Secs | |||
| External Resistor 1.3 K Ohms | |||
| Name Plate RZF9066-601 | |||
| Outline Diagram MFM017 & FJ0349 | |||
| VTT11ZG8023LCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| Model No : VTT11ZG8023LCH |
| VTT11 |
| APPLICATION - PICK UP |
| AUX. CURRENT OR VOLTAGE - 220 - 250V AC |
| CASE SIZE - 1/2N H 12T |
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R |
| FLAG - YES |
| MOUNTING - FLUSH |
| TIME DELAY P/U OR D/O - 0.5 - 5 SECS. |
| External Resistor |
| Name Plate RZF9066-601 |
| Outline Diagram MFM017 |
| Wiring Diagram MZDZ601.02-2 |
| VTT11ZG8024LCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| RELAY MODEL NO - VTT11ZG8024LCH |
| VTT11 |
| APPLICATION - PICK UP |
| AUX. CURRENT OR VOLTAGE - 220 - 250V AC |
| CASE SIZE - 1/2N H 12T |
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R |
| FLAG - YES |
| MOUNTING - FLUSH |
| TIME DELAY P/U OR D/O - 1 - 10 SECS. |
| External Resistor |
| NAME PLATE - RZF9066-601 |
| Outline Diagram MFM017 |
| Wiring Diagram MZDZ601.02-2 |
Click to Download Catalog for VTT
| VTT11ZG8053BCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| Model No : VTT11ZG8053BCH |
| VTT11 |
| Application - Pick Up |
| Aux. Voltage - 220 - 230 V dc |
| Case Size - 1/2N H 12T |
| Contacts - 2 N/O 2 N/C S/R |
| Flag - Yes |
| Mounting - Flush |
| Timing Range - 0.5 - 5 Secs. |
| External Resistor 3.3 K.OHMS 35 Watts |
| Name Plate RZF9066-601 |
| Outline Diagram MFM017 & FJ0349 |
| Wiring Diagram MZDZ601.01-2 |
Click to Download Catalog for VTT
| VTT11ZG8054BCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| Model No : - VTT11ZG8054BCH |
| VTT 11 |
| APPLICATION - PICK UP |
| AUX.VOLTAGE - 220 - 230 V DC |
| CASE SIZE - 1/2N H 12 TER |
| CONTACTS - 2 N/O 2 N/C S/R |
| FLAG - YES |
| MOUNTING - FLUSH |
| TIME DELAY P/U - 1 - 10 SECS. |
| External Resistor - 3.3 K.OHMS |
| Name Plate - RZF9066-601 |
| Outline Diagram - MFM017 <(>&<)> FJ0349 |
| Wiring Diagram - MZDZ601.01-2 |
Click to Download Catalog for VTT
| GBVTT11ZG8178BCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| Model No : - VTT11ZG8178B(M) |
| - VTT11 |
| APPLICATION - PICK UP |
| AUX. CURRENT OR VOLTAGE - 24 - 30V DC |
| CASE SIZE - 1/2N H 12T |
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R |
| FLAG - YES |
| MOUNTING - FLUSH |
| TIME DELAY P/U OR D/O - 0.1 - 1 SEC. |
| Name Plate - RZF9066-601 |
| Outline Diagram - MFM017 |
| Wiring Diagram - MZDZ601.01-2 |
Click to Download Catalog for VTT
| GBVTT11ZG8179BCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| Model No : VTT11ZG8179BCH |
| VTT11 |
| APPLICATION - PICK UP |
| AUX. CURRENT OR VOLTAGE - 24 - 30V DC |
| CASE SIZE - 1/2N H 12T |
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R |
| FLAG - YES |
| MOUNTING - FLUSH |
| TIME DELAY P/U OR D/O - 0.5 - 5 SECS. |
| External Resistor |
| Name Plate RZF9066-601 |
| Outline Diagram MFM017 |
| Wiring Diagram MZDZ601-01-2 |
Click to Download Catalog for VTT
| GBVTT11ZG8180BCH |
| STATIC DEF TIME DELAY RELAY WITH DELAY O |
| Technical Specifications |
| Model No - VTT11ZG8180BCH |
| VTT11 |
| APPLICATION - PICK UP |
| AUX. CURRENT OR VOLTAGE - 24 - 30V DC |
| CASE SIZE - 1/2N H 12T |
| CONTACTS (S/R OR H/R) - 2 N/O 2 N/C S/R |
| FLAG - YES |
| MOUNTING - FLUSH |
| TIME DELAY P/U OR D/O - 1 - 10 SECS. |
| External Resistor |
| Name Plate RZF9066-601 |
| Outline Diagram MFM017 |
| Wiring Diagram MZDZ601-01-2 |
Click to Download Catalog for VTT
