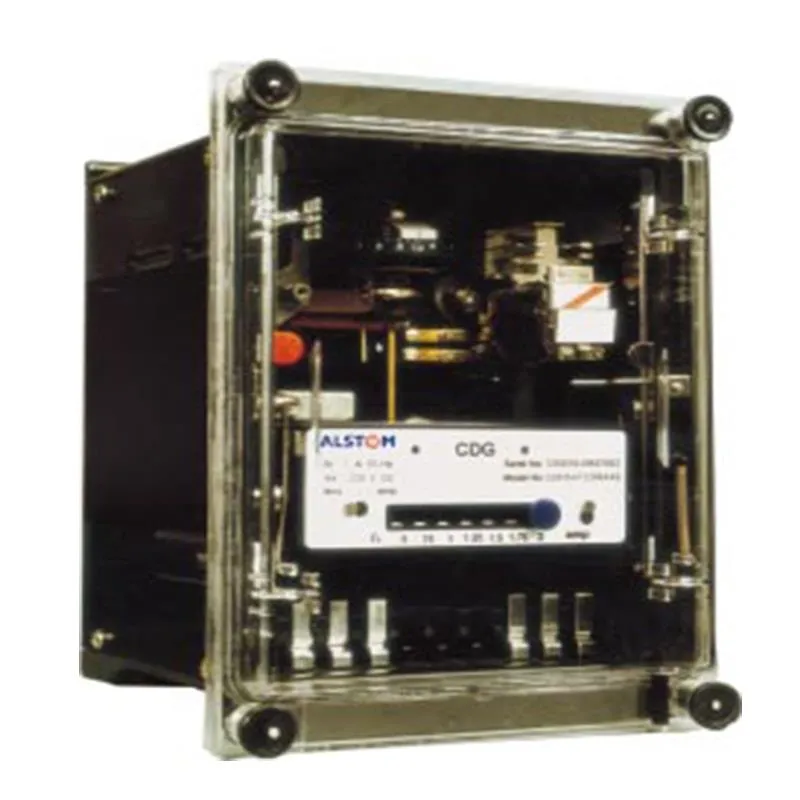

Alstom Over current & Earth fault Protection CDG11AF004SACH
SKU : alstom-cdG11AF004SACH
Mfr Part No. : CDG11AF004SACH
HSN Code : 8536
GBCDG11AF004SACH
SELF-POWERED INVERSE TIME O/C OR E/F REL
| Technical specification | |
| Relay model no | CDG11AF004SACH |
| Relay type | CDG11 |
| Case size | 1D V 10T |
| Application | E/F |
| C.T.Secondary | 5 AMP C.T. |
| Contacts (S/R OR H/R) | 2 N/O S/R |
| Flag | Yes |
| Mounting | Flush |
| BURDEN | 3VA / 3 SECS |
| E/F OR U/V SETTING | 0.5 - 2 Amps. |
| O/C OR O/V SETTING | NOT APPLICABLE |
| Name plate | RFG9126-795 |
| Outline drawing | MFJ012 |
| Wiring diagram | MADZ802.63-1 |
|
Cut out Dimension (in mm.) (H x W x D) |
222 X 150 X 203 |
