* The original products may vary from the picture

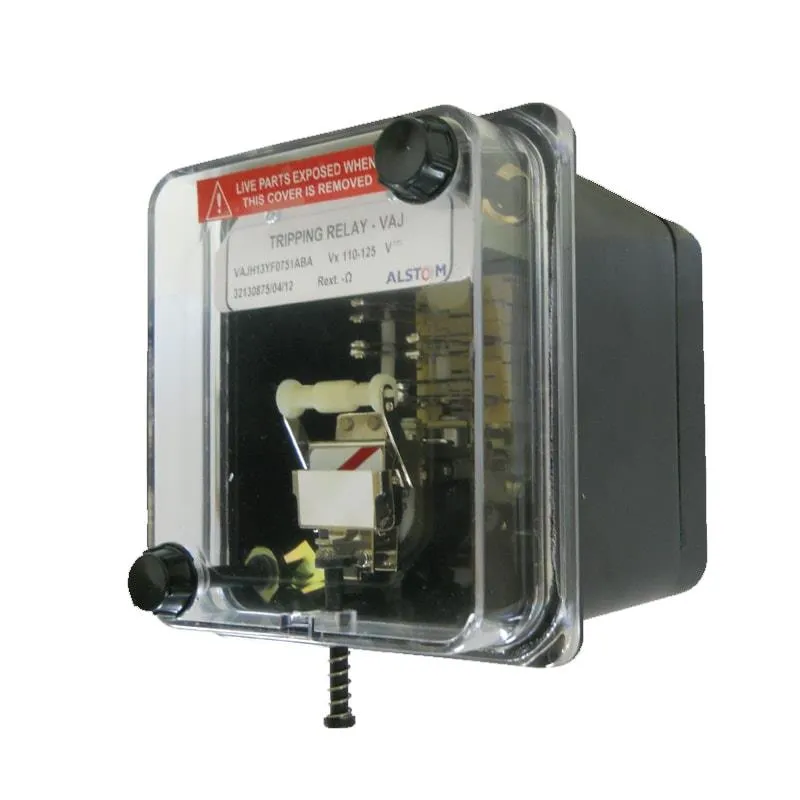

Alstom Tripping relays VAJHM23ZG1004BBA
SKU : Alstom-VAJHM23ZG1004BBA
Mfr Part No. : VAJHM23ZG1004BBA
HSN Code : 8536
| GBVAJHM23ZG1004BBA |
| 2 POLE HISPEED TRIP RELAY WITH COIL SUPE |
| Technical Specifications: |
| Relay model no - GBVAJHM23ZG1004BBA |
| Relay type - VAJHM23 |
| Aux.current or voltage - 220 - 250V dc |
| Burden - High |
| Case Size - 1/2N Horz. 20T |
| Contacts L.H - 2 N/O 2 N/C H/R |
| Contacts R.H - 2 N/O 2 N/C H/R |
| Total Output Contacts - 4 N/O 4 N/C H/R |
| Flag - Yes |
| Mounting - Flush |
| Note:- Resistor RS - 2 off |
| in Parallel 300+300 Ohms |
| internally for each LH<(>&<)>RH Units |
| Name plate - RFB9070 004 |
| Outline diagram - RFG0031 SHT3A |
| Wiring diagram - 01VAJHM23ZG 001 |
| Cut Out Dimension(in mm)-(H X W X D) - 116x145x130 |
